317 SERIES DUOFLOW (ROTATING INTERNAL PIPE - TYPE 1)
INQUIRY
Specifications
CLICK TO SLIDE
SERVICE CONDITIONS
| Fluid |
Hot Oil、 ( Hot Water 、Steam ) |
| Max Temp. | 250 ℃ |
| Max Pres. | 17 kg/cm² |
| Max Speed | 200 rpm |
Model Description
| 317UTO - 1" RH or LH | |
| 317UQO - 1.1/4" | |
| 317YTO - 2" LH | |
| 317YQO - 2" RH | |
| O = | Hot Oil |
| Y = | Duo, Rot. Pipe with Thread |
| T = | Thread Type Rotor |
| Q = | Flange Type Rotor |
| Standard and Large Rotor Are Available for Your Needs. | |
| RH = | Right Thread |
| LH = | Left Thread |
Specifications
PLEASE SELECT PREFERRED SPECIFICATION

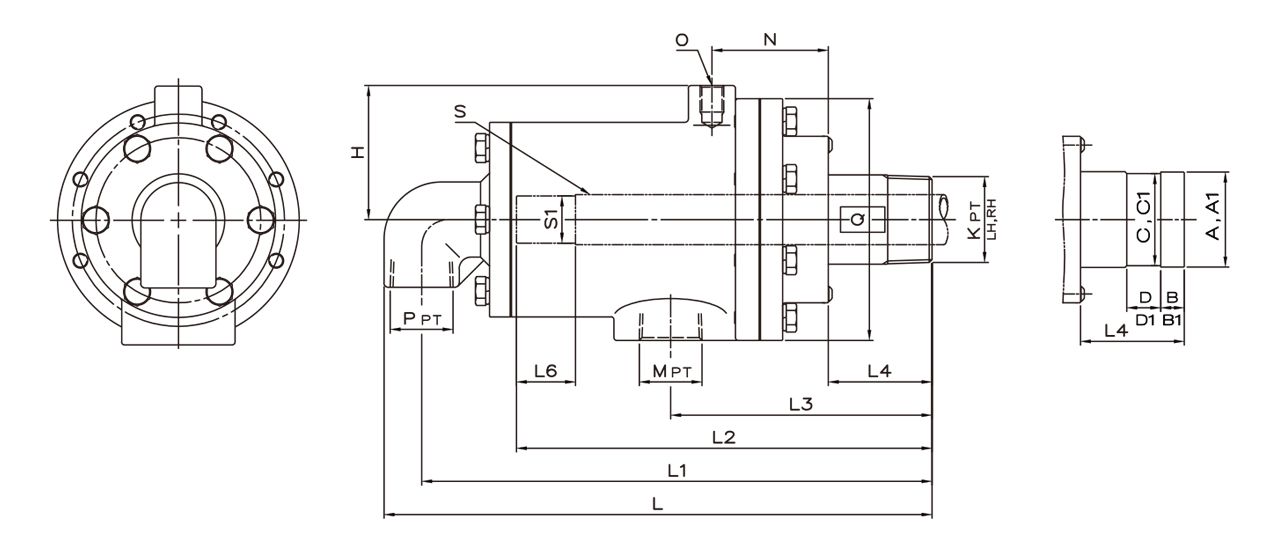

The drawings provided by Rotary Foremost Co., Ltd. shall prevail.
