317 SERIES DUOFLOW (ROTATING INTERNAL PIPE - TYPE 2)
317 SERIES DUOFLOW (ROTATING INTERNAL PIPE - TYPE 2)

INQUIRY

Specifications
CLICK TO SLIDE
SERVICE CONDITIONS
Fluid Hot Oil、
( Hot Water 、Steam )
Max Temp. 250 ℃
Max Pres. 17 kg/cm²
Max Speed 200 rpm
Model Description
317UTO - 1" RH or LH
317UQO - 1.1/4"
317YTO - 2" LH
317YQO - 2" RH
O = Hot Oil
Y = Duo, Rot. Pipe with Thread
T = Thread Type Rotor
Q = Flange Type Rotor
Standard and Large Rotor Are Available for Your Needs.
RH = Right Thread
LH = Left Thread

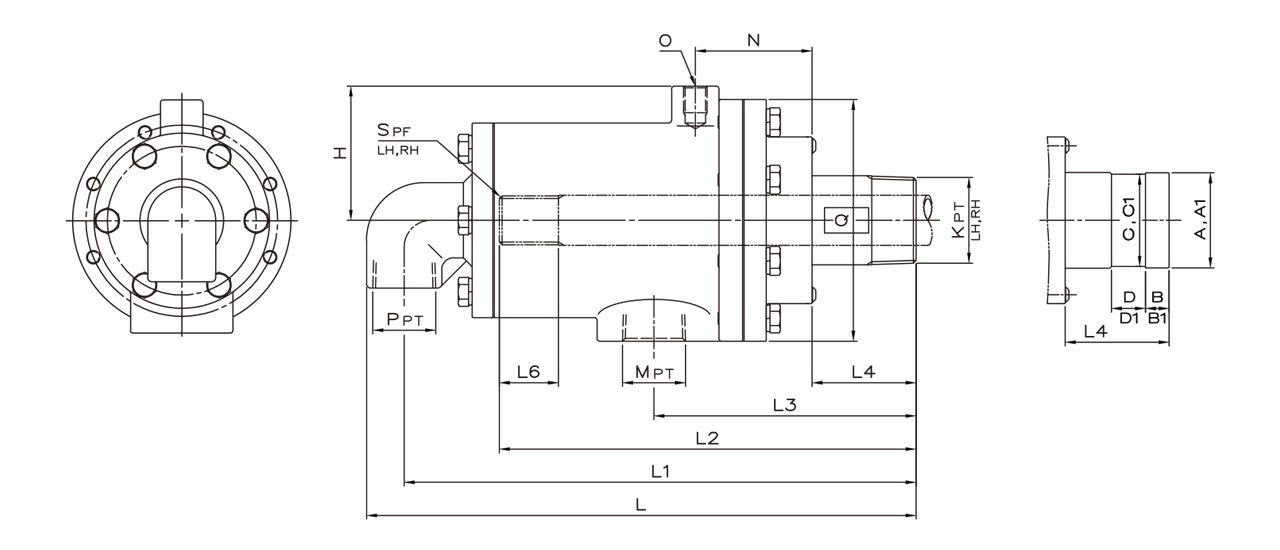

Specifications
Specifications
PLEASE SELECT PREFERRED SPECIFICATION
